OOTDTY 315MHz Universal DC 9V 12V 24V 10A Relay 1CH Wireless Remote Control Switch Receiver RF Transmitter Intelligent Home
OOTDTY 315MHz Universal DC 9V 12V 24V 10A Relay 1CH Wireless Remote Control Switch Receiver RF Transmitter Intelligent Home
Regular price
$8.23 USD
Regular price
$8.23 USD
Sale price
$8.23 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Wireless Communication: WiFi
Use: Universal
Support APP: No
Package: No
Origin: Mainland China
Model Number: Receiver
Frequency: 315 MHz
Channel: 1
Brand Name: OOTDTY

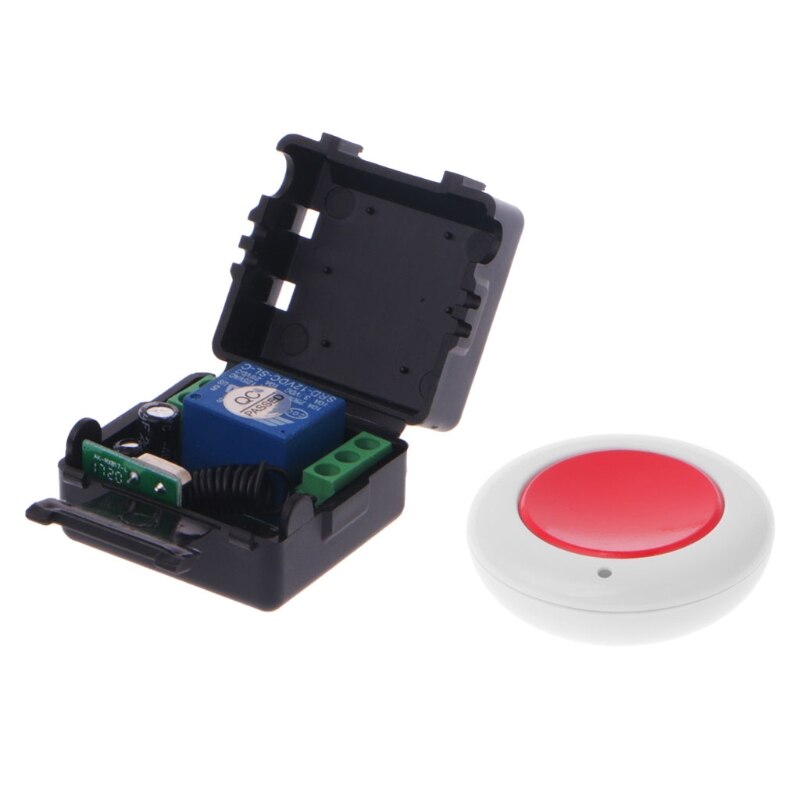

Universal DC 9V 12V 24V 10A Relay 1CH Wireless Remote Control Switch Receiver RF Transmitter Intelligent Home
Description:
Features:
brand new and high quality.
New item RF wireless remote control DC 12V / 24V / 9V 1 Channel Mini Receiver + Transmitter for intelligent home.
Has the advantages of simple matching, safe and reliable for the modification of ancillary products.
Widely used in (remote control switch, remote control of the pump on and off, remote control machine on and off, remote control motor positive and negative, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote retractable door, remote control curtains, alarm host, alarm,remote control motorcycle, remote control electric car, remote control MP3, remote control lights, remote control cars, security and other civil and industrial supporting remote areas.
Working/output way:
Models:
1)Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF. ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
4)Learn:Press the learning code,Loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it means learning successfully .
5)Remove:Press the learning button about 8 seconds , the indicator turn on to off , it means the Code had been removed successfully.
Specifications:

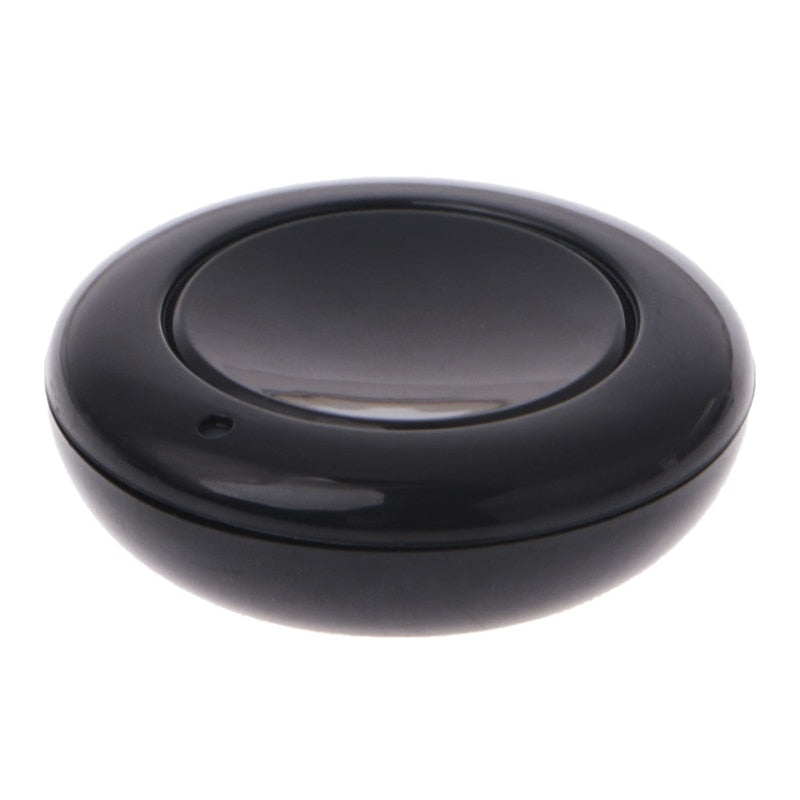

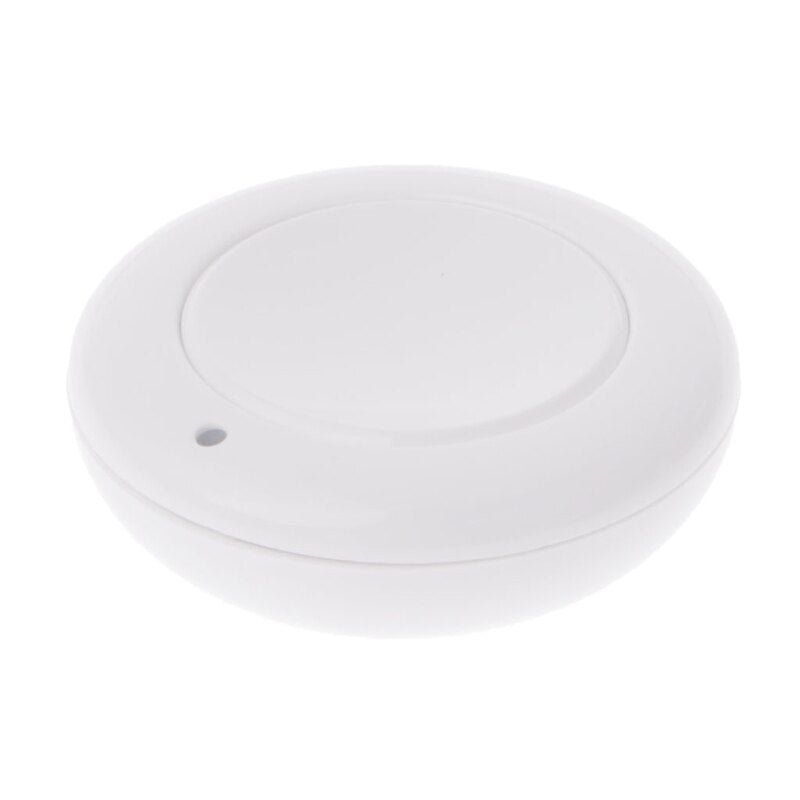

1.Transmitter
Encode: EV1527
Size: 45×13mm/1.77×0.51in (Approx.)
Channel: 1 CH
Material: Plastic + Metal
Color: Black/White/Red (Optional)
Buttons: 1 Buttons
Operating frequency: 315MHz
Remote Control Distance: 50m
Power Supply: Built-in button battery

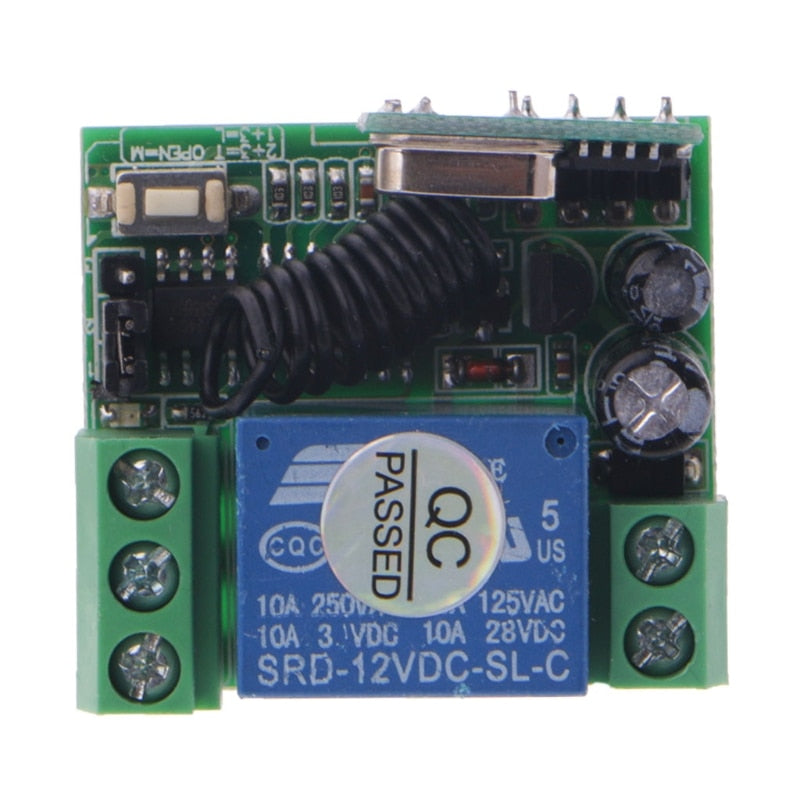

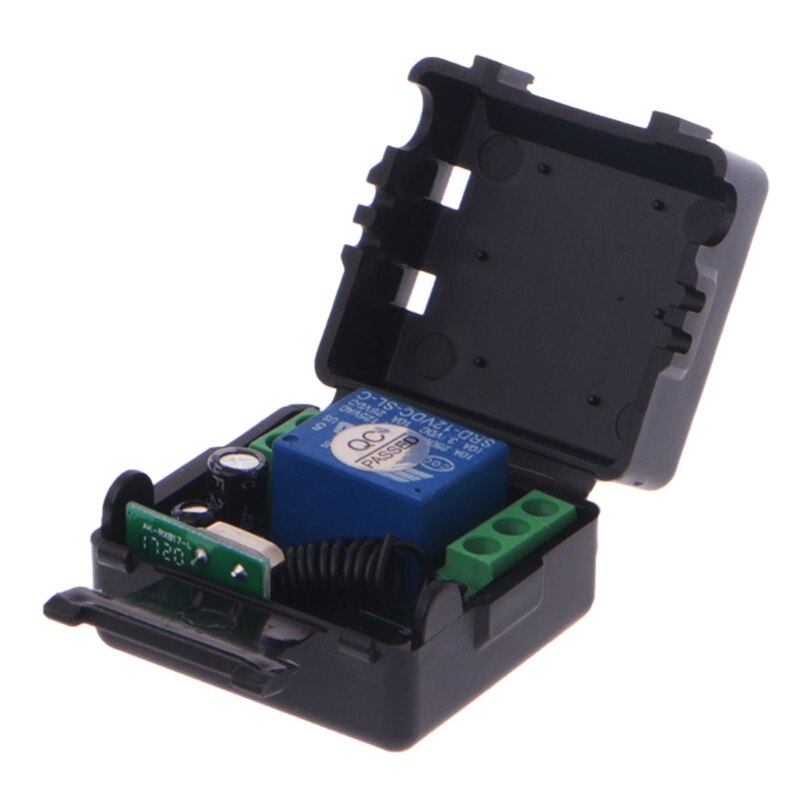

2. Receiver
Decode: Fixed code, soldering
Material: Plastic + Metal
Color: Black
Size: 38×34×25mm/1.51×1.34×0.98in (Approx.)
Power Supply (Operating Voltage): DC 12V / 24V / 9V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Operating Temperature: -40° - 80°
Quantity: 1 Set
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
4.Original Setting is Momentary, Change it by yourself.
Package includes:
1 x Receiver
1 x Transmitter (No retail package)
